AMPLIROLL^® TELESCOPIC AND ARTICULATED JIB - 16T CAPACITY

TECHNICAL DATA

For GVW 15 to 26 T	MIN (mm)	MAX (mm)	RUP (mm)	A (°)	L1 (mm)	L2 (mm)	L3 (mm)	H (mm)	Weight (Kg)
S44	3200	5500	4900	58	4400	400	1520	255	1900
S45	3200	5600	5000	52	4500	500	1620	255	1900
S46	3200	5700	5100	58	4600	600	1720	255	1925
S47	3200	5800	5200	58	4700	700	1820	255	1925
S48	3200	5900	5300	58	4800	800	1920	255	1950
S49	3200	6000	5400	58	4900	900	2020	255	1975
S50	3500	6100	5500	58	5000	700	1820	255	1975
S51	3500	6200	5600	58	5100	800	1920	255	1975
S52	3500	6300	5700	58	5200	900	2020	255	2115
S53	3800	6400	5800	58	5300	700	1820	255	2135
S54	3800	6500	5900	58	5400	800	1920	255	2175
S55	3800	6700	6000	58	5500	900	2020	255	2245
S56	3800	6800	6100	58	5600	1000	2120	255	2245
S57	3800	6900	6200	58	5700	1100	2220	255	2250
S58	3900	7000	6300	58	5800	1100	2220	255	2255

ARGUMENTS

• Marrel manufactured cylinders
• Integrated safety guards to prevent miss-use
• High tensile steel
• Cast parts for high-stress areas

HIGHLIGHTS

• Reduction of loading angle
• Greater range of container lengths
• Welded hook with pneumatic safety latch
• The Marrel tilting frame provides unmatched lifting capacity
• Customization: color on demand and wide range of accessories
• Optimized equipment height
• End-of-stroke damper integrated into the arm cylinders

OPTIONS

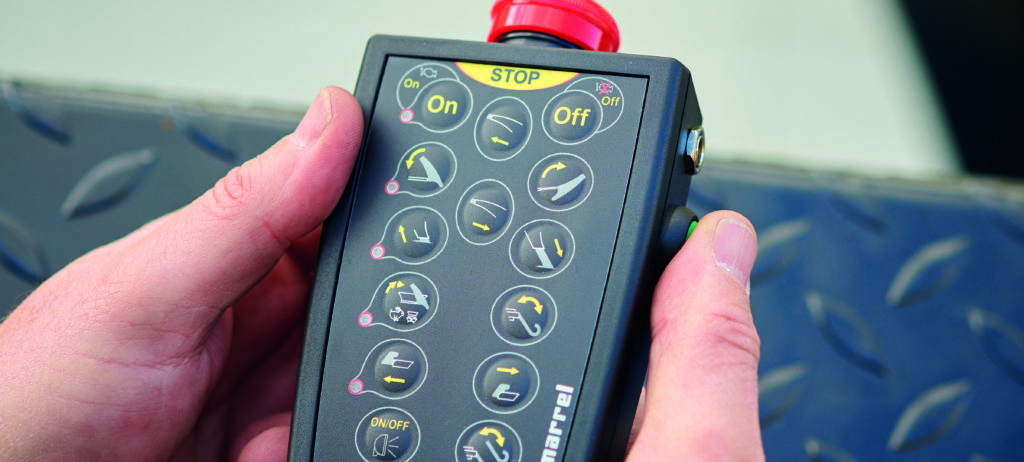

• Available controls: electrical, radio control

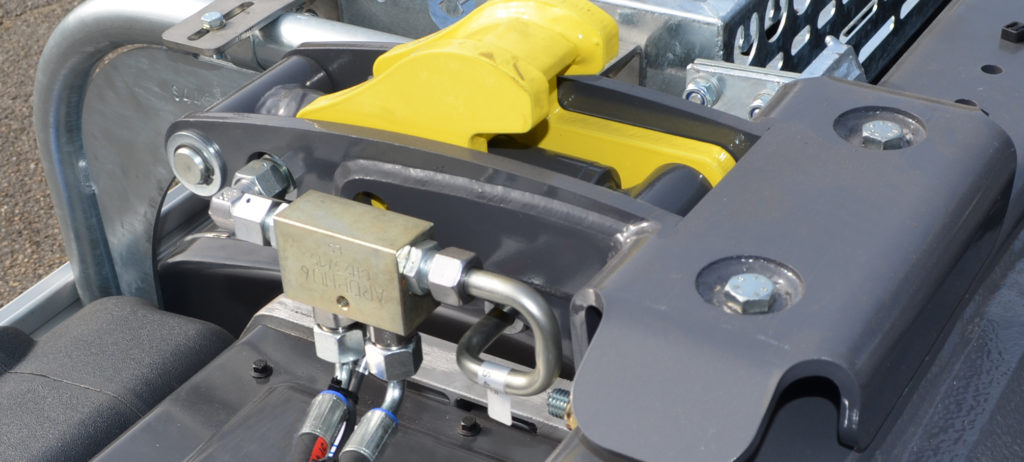

• Front hydraulic locks

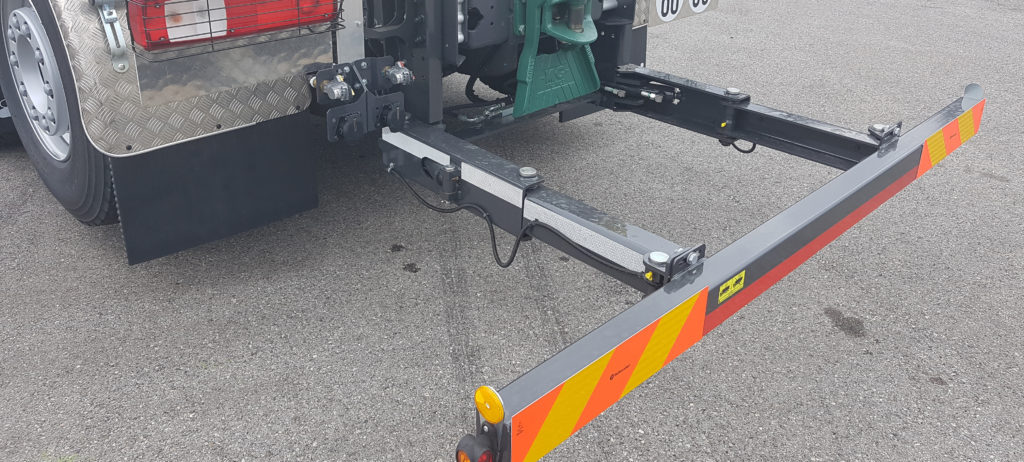

• Panto rear underrun protection adjustable or fixed

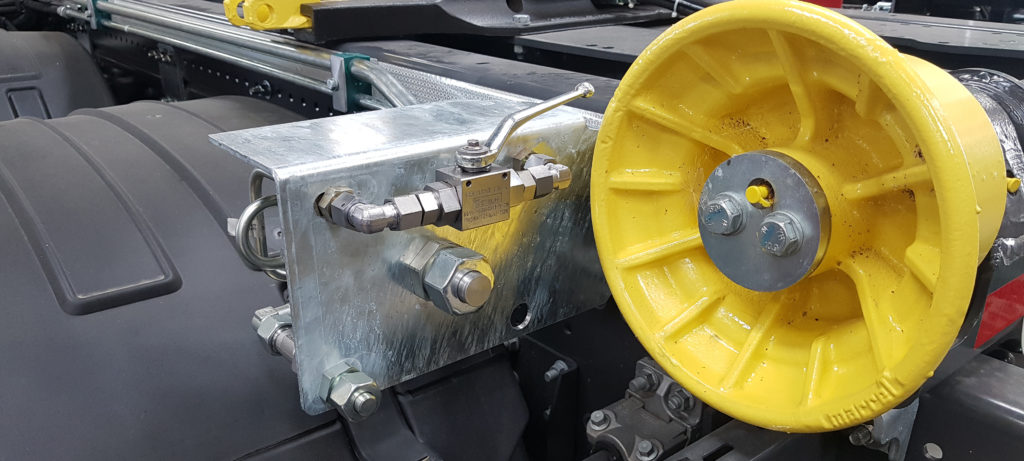

• Additional hydraulic lines (for cranes, rear tipper trailer...)
• High speed

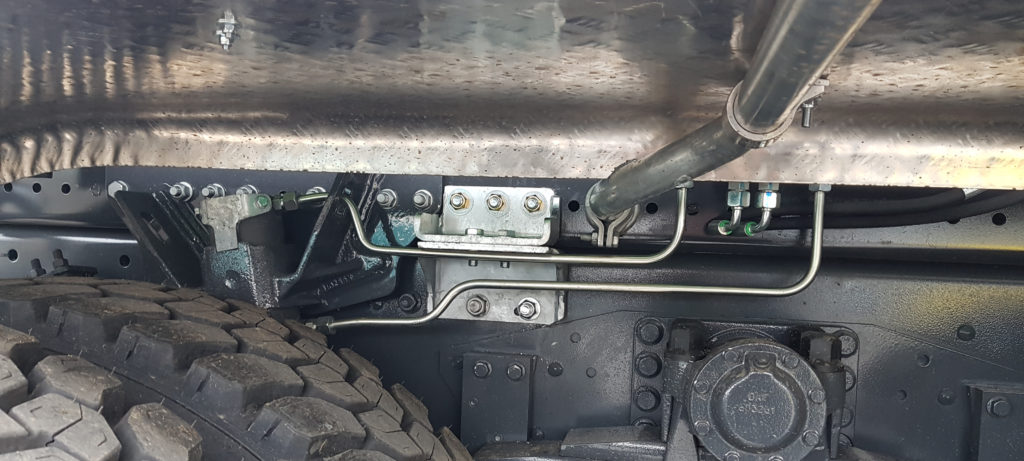

• Vehicle stability systems

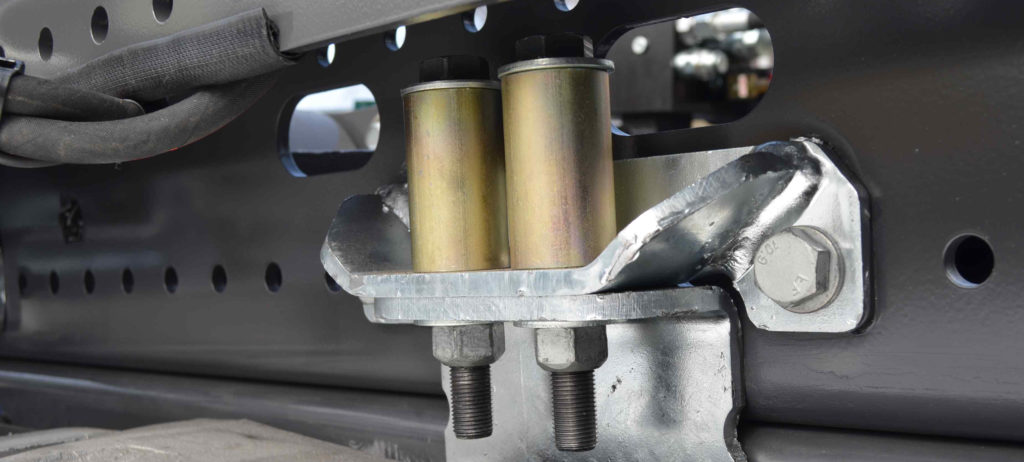

• Attachments brackets suited for various truck models
