AMPLIROLL® TELESCOPIC JIB - 20T CAPACITY
TECHNICAL DATA
For GVW from 18 T | MIN (mm) | MAX (mm) | RUP (mm) | A (°) | L1 (mm) | L2 (mm) | H (mm) | Weight (Kg) |
S44 | 3800 | 5500 | 4900 | 56 | 4400 | 930 | 255 | 2100 |
S45 | 3800 | 5600 | 5000 | 56 | 4500 | 1030 | 255 | 2110 |
S46 | 3800 | 5700 | 5100 | 56 | 4600 | 1130 | 255 | 2110 |
S47 | 3800 | 5800 | 5200 | 56 | 4700 | 1230 | 255 | 2110 |
S48 | 4100 | 5900 | 5300 | 59 | 4800 | 1030 | 255 | 2150 |
S49 | 4100 | 6000 | 5400 | 59 | 4900 | 1130 | 255 | 2170 |
S50 | 4100 | 6100 | 5500 | 59 | 5000 | 1230 | 255 | 2170 |
S51 | 4100 | 6200 | 5600 | 59 | 5100 | 1330 | 255 | 2170 |
S52 | 4400 | 6300 | 5700 | 58 | 5200 | 1130 | 255 | 2290 |
S53 | 4400 | 6400 | 5800 | 58 | 5300 | 1230 | 255 | 2300 |
S54 | 4400 | 6500 | 5900 | 58 | 5400 | 1330 | 255 | 2300 |
S55 | 4600 | 6600 | 6000 | 58 | 5500 | 1230 | 255 | 2310 |
S56 | 4600 | 6800 | 6100 | 58 | 5600 | 1330 | 255 | 2320 |
S57 | 4600 | 6900 | 6200 | 58 | 5700 | 1430 | 255 | 2330 |
S58 | 4800 | 7000 | 6300 | 58 | 5800 | 1330 | 255 | 2340 |
S59 | 4800 | 7100 | 6400 | 58 | 5900 | 1430 | 255 | 2350 |
S60 | 4800 | 7200 | 6500 | 58 | 6000 | 1530 | 255 | 2350 |
SL61 | 5200 | 7300 | 6600 | 53 | 6100 | 1280 | 275 | 2565 |
SL62 | 5200 | 7400 | 6700 | 53 | 6200 | 1380 | 275 | 2595 |
SL63 | 5200 | 7500 | 6800 | 53 | 6300 | 1480 | 275 | 2625 |
SL64 | 5600 | 7600 | 6900 | 52 | 6400 | 1130 | 275 | 2655 |
SL65 | 5600 | 7700 | 7000 | 52 | 6500 | 1230 | 275 | 2685 |
SL66 | 5600 | 7800 | 7100 | 52 | 6600 | 1330 | 275 | 2715 |
SL67 | 5600 | 7900 | 7200 | 52 | 6700 | 1430 | 275 | 2745 |
SL68 | 5600 | 8000 | 7300 | 52 | 6800 | 1530 | 275 | 2775 |
ARGUMENTS
• Cast parts for high-stress areas
• Marrel manufactured cylinders
• Integrated safety to prevent miss-use
• High tensile steel
HIGHLIGHTS
• Removable hook or with safety latch
• The Marrel tilting frame provides unmatched lifting capacity
• Shot blasting and painting before assembly
• Customization: color on demand and wide range of accessories
• Optimized equipment height
• End-of-stroke damper integrated into the arm cylinders
OPTIONS

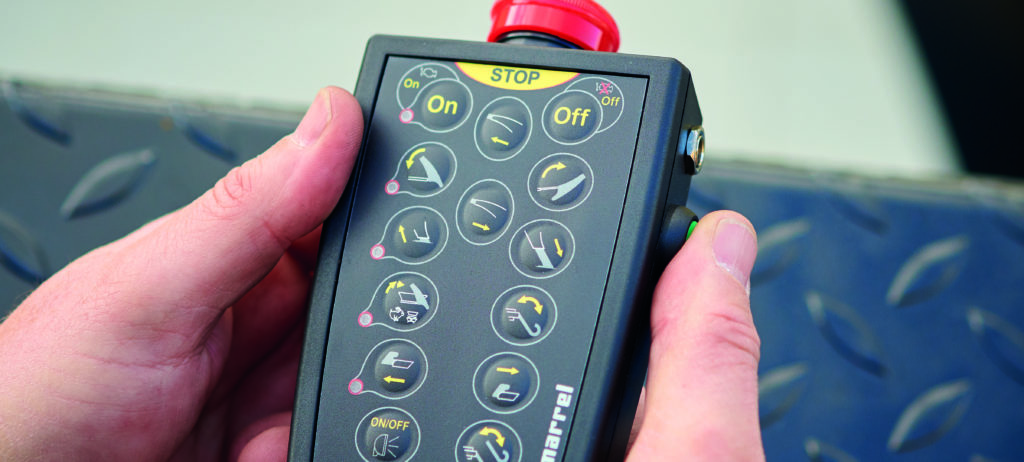

• Available controls: electrical, radio control

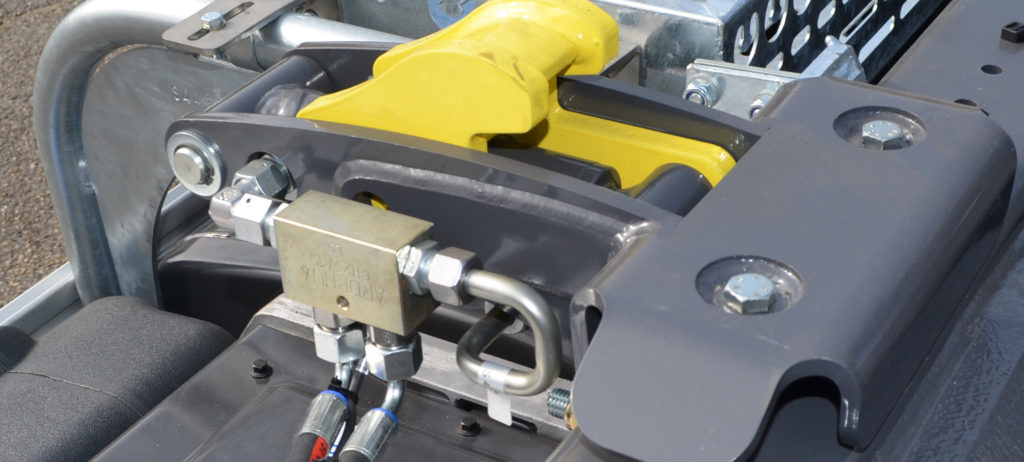

• Front hydraulic locks

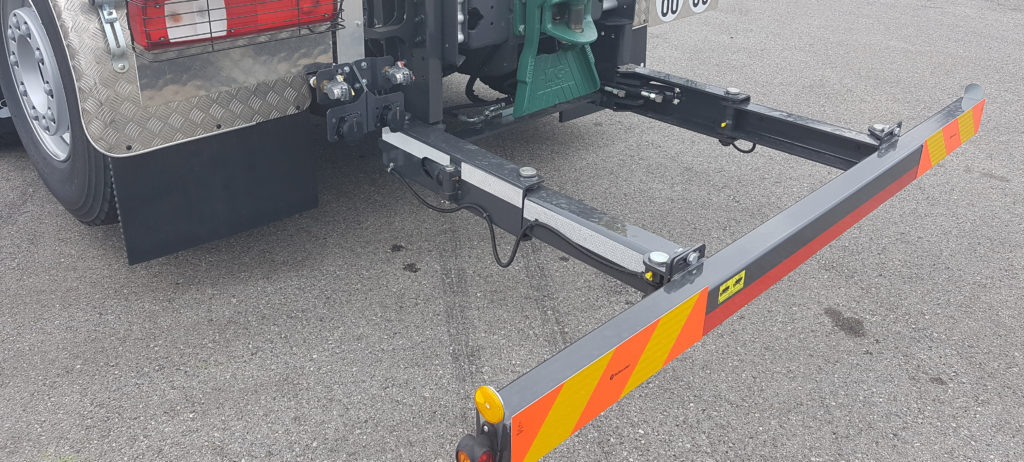

• Panto rear underrun protection adjustable or fixed

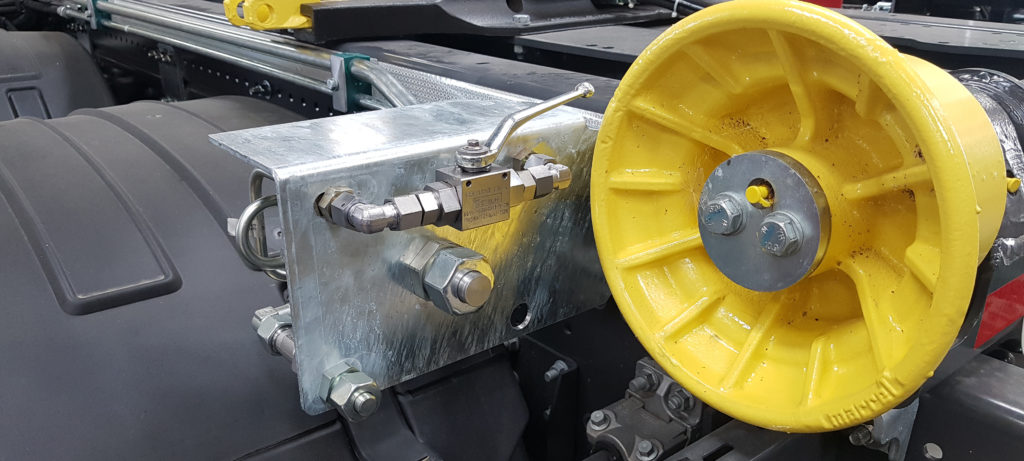

• Additional hydraulic lines (for cranes, rear tipper trailer...)
• High speed

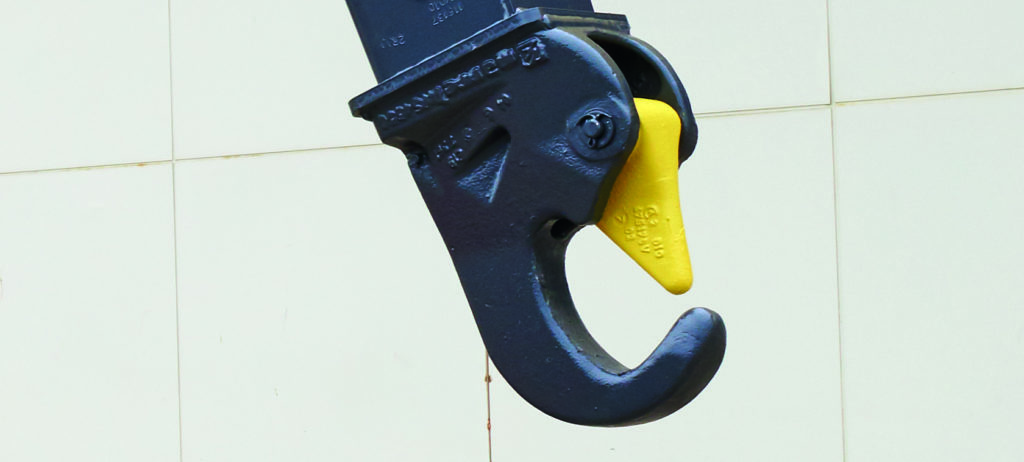

• Hook with mechanical or pneumatic safety latch
• Vehicle stability systems

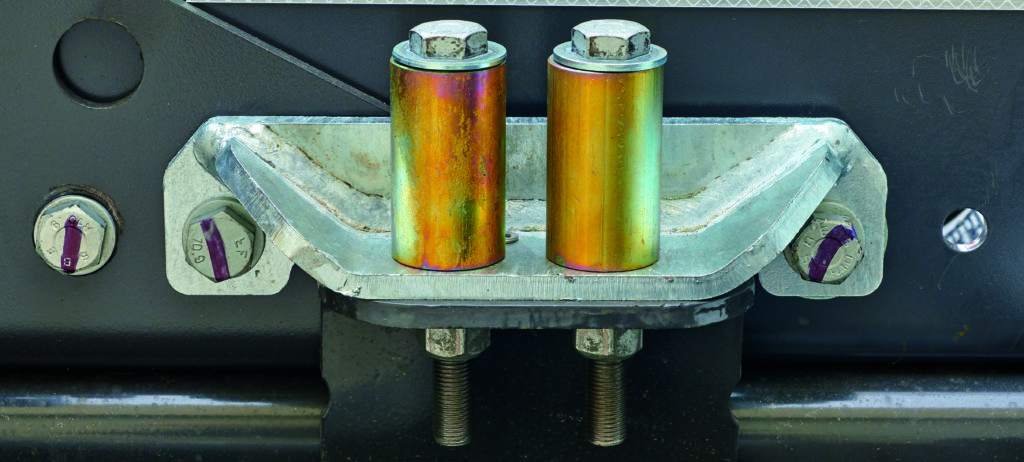

• Attachments brackets suited for various truck models
AL20
DOCUMENTATION
Product sheet Ampliroll hooklift AL20
