AMPLIROLL® TELESCOPIC AND ARTICULATED JIB - 24T CAPACITY
TECHNICAL DATA
For GVW from 26 T | MIN (mm) | MAX (mm) | RUP (mm) | A (°) | L1 (mm) | L2 (mm) | L3 (mm) | H (mm) | Weight (Kg) |
S49 | 3700 | 6100 | 5400 | 55 | 4900 | 505 | 1505 | 275 | 2740 |
S50 | 3700 | 6200 | 5500 | 55 | 5000 | 605 | 1605 | 275 | 2750 |
S51 | 3700 | 6300 | 5600 | 55 | 5100 | 705 | 1705 | 275 | 2750 |
S52 | 3700 | 6400 | 5700 | 55 | 5200 | 805 | 1805 | 275 | 2750 |
S53 | 4100 | 6500 | 5800 | 53 | 5300 | 505 | 1505 | 275 | 2790 |
S54 | 4100 | 6600 | 5900 | 53 | 5400 | 605 | 1605 | 275 | 2810 |
S55 | 4100 | 6700 | 6000 | 53 | 5500 | 705 | 1705 | 275 | 2810 |
S56 | 4100 | 6800 | 6100 | 53 | 5600 | 805 | 1805 | 275 | 2810 |
S57 | 4100 | 6900 | 6200 | 53 | 5700 | 905 | 1905 | 275 | 2930 |
S58 | 4600 | 7000 | 6300 | 53 | 5800 | 505 | 1505 | 275 | 2940 |
S59 | 4600 | 7100 | 6400 | 53 | 5900 | 605 | 1605 | 275 | 2940 |
S60 | 4600 | 7200 | 6500 | 53 | 6000 | 705 | 1705 | 275 | 2950 |
SL61 | 4600 | 7300 | 6600 | 53 | 6100 | 805 | 1805 | 275 | 2980 |
SL62 | 4600 | 7400 | 6700 | 53 | 6200 | 905 | 1905 | 275 | 3010 |
SL63 | 4600 | 7500 | 6800 | 53 | 6300 | 1005 | 2005 | 275 | 3040 |
SL64 | 5000 | 7600 | 6900 | 52 | 6400 | 705 | 1705 | 275 | 3070 |
SL65 | 5000 | 7700 | 7000 | 52 | 6500 | 805 | 1805 | 275 | 3100 |
SL66 | 5000 | 7800 | 7100 | 52 | 6600 | 905 | 1905 | 275 | 3130 |
SL67 | 5000 | 7900 | 7200 | 52 | 6700 | 1005 | 2005 | 275 | 3160 |
SL68 | 5000 | 8000 | 7300 | 52 | 6800 | 1105 | 2105 | 275 | 3190 |
ARGUMENTS
• Integrated safety to prevent miss-use
• Marrel manufactured cylinders
• High tensile steel
• Cast parts for high-stress areas
HIGHLIGHTS
• Reduction of loading angle
• Greater range of container lengths
• Welded hook with pneumatic safety latch
• The Marrel tilting frame provides unmatched lifting capacity
• Shot blasting and painting before assembly
• Customization: color on demand and wide range of accessories
• Optimized equipment height
• End-of-stroke damper integrated into the arm cylinders
OPTIONS

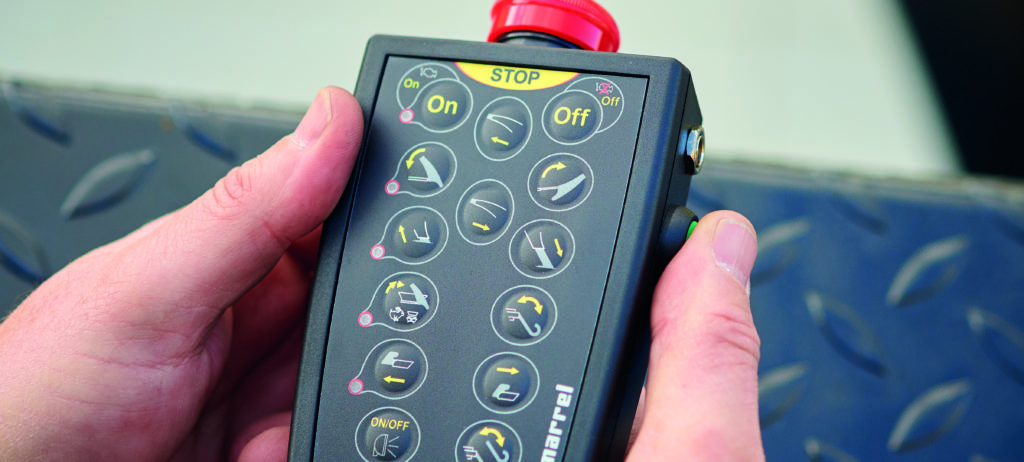

• Available controls: electrical, radio control

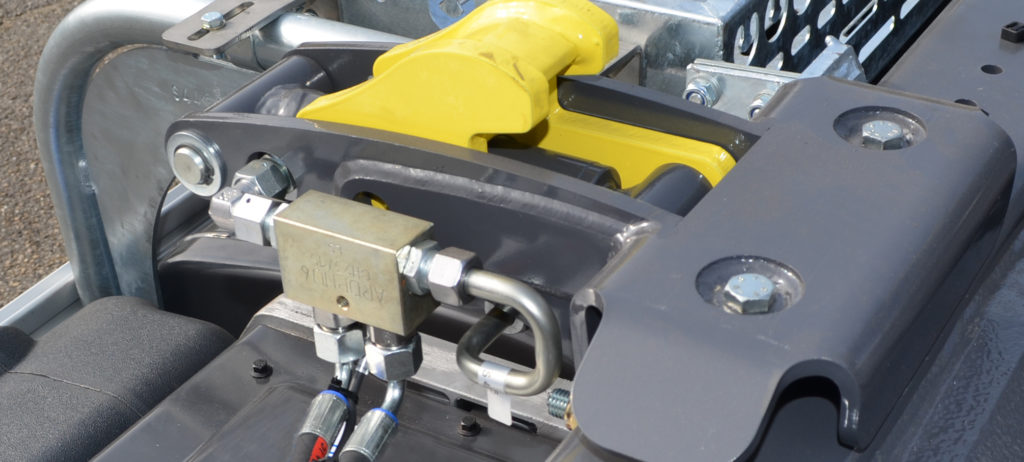

• Front hydraulic locks

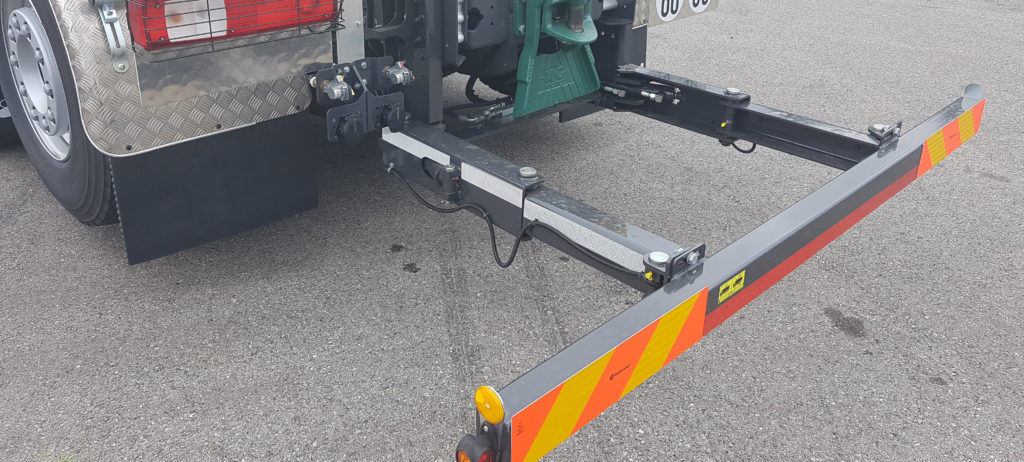

• Panto rear underrun protection adjustable or fixed

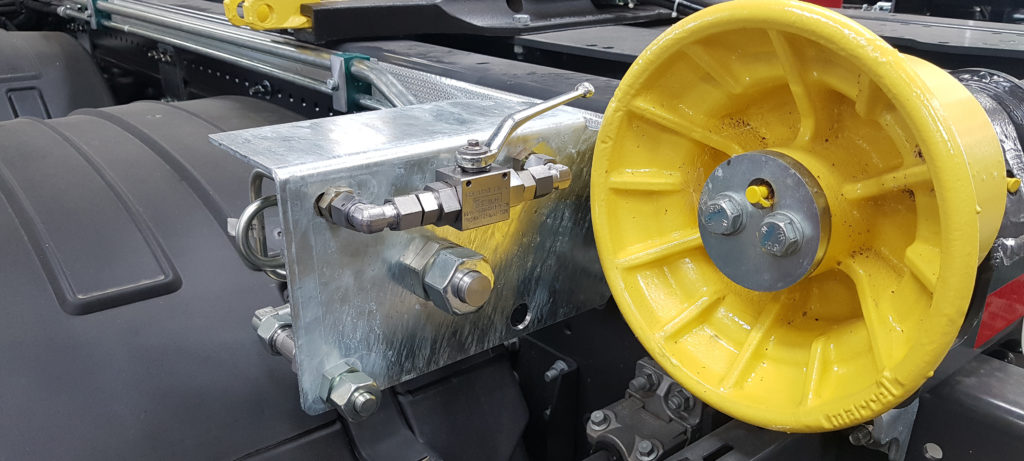

• Additional hydraulic lines (for cranes, rear tipper trailer...)
• High speed

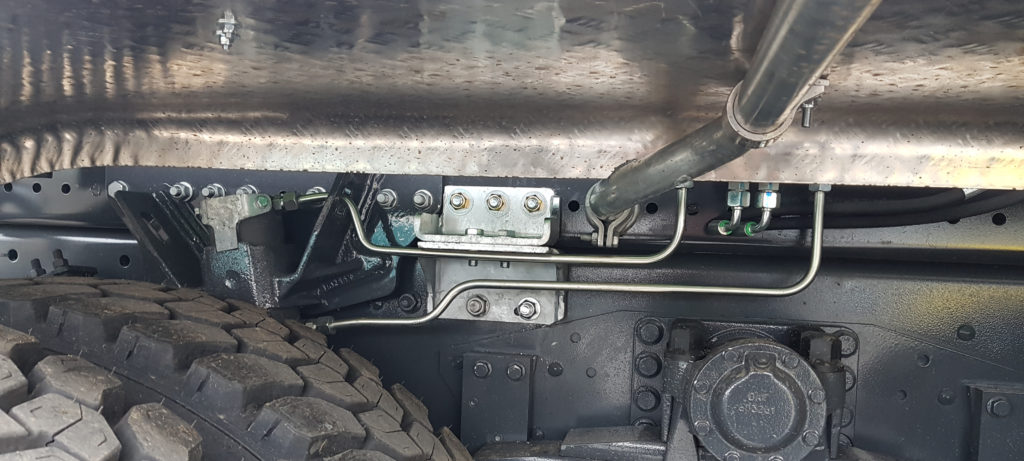

• Vehicle stability systems

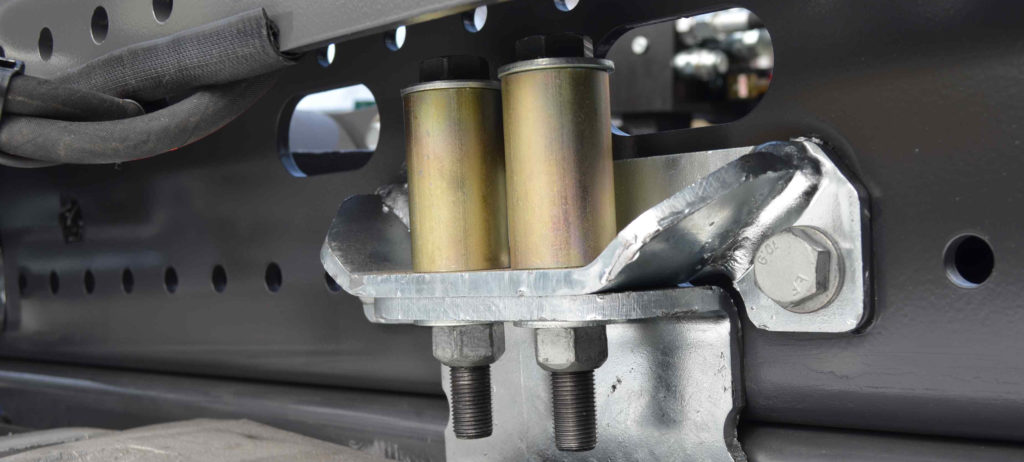

• Attachments brackets suited for various truck models
AL24PA
