AMPLIROLL® TELESCOPIC JIB - 4T CAPACITY
TECHNICAL DATA
For GVW up to 7.5 T | MIN (mm) | MAX (mm) | RUP (mm) | A (°) | L1 (mm) | L2 (mm) | H (mm) | Weight (Kg) |
A26 | 2300 | 3100 | 2800 | 56 | 2550 | 550 | 160 | 605 |
A27 | 2300 | 3400 | 2900 | 56 | 2650 | 650 | 160 | 615 |
A28 | 2300 | 3600 | 3000 | 56 | 2750 | 750 | 160 | 625 |
A29 | 2600 | 3800 | 3100 | 56 | 2850 | 550 | 160 | 635 |
A30 | 2600 | 3900 | 3200 | 56 | 2950 | 650 | 160 | 645 |
A31 | 2600 | 4000 | 3300 | 56 | 3050 | 750 | 160 | 655 |
A32 | 2600 | 4100 | 3400 | 56 | 3150 | 850 | 160 | 665 |
A33 | 2900 | 4200 | 3500 | 53 | 3250 | 650 | 160 | 675 |
A34 | 2900 | 4300 | 3600 | 53 | 3350 | 750 | 160 | 685 |
A35 | 2900 | 4400 | 3700 | 53 | 3450 | 850 | 160 | 695 |
A36 | 2900 | 4500 | 3800 | 53 | 3550 | 950 | 160 | 705 |
ARGUMENTS
• Standardized hook height
• Marrel manufactured cylinders
• Integrated safety to prevent miss-use
• Adaptable to all container types
• Great depth of range
HIGHLIGHTS
• Optimized equipment height
• Optimized weight for maximum useful load
• Magnetized removable control with digital screen
• Shot blasting and painting before assembly
• Customization : color on demand and wide range of accessories
• Adaptable to all chassis types
OPTIONS

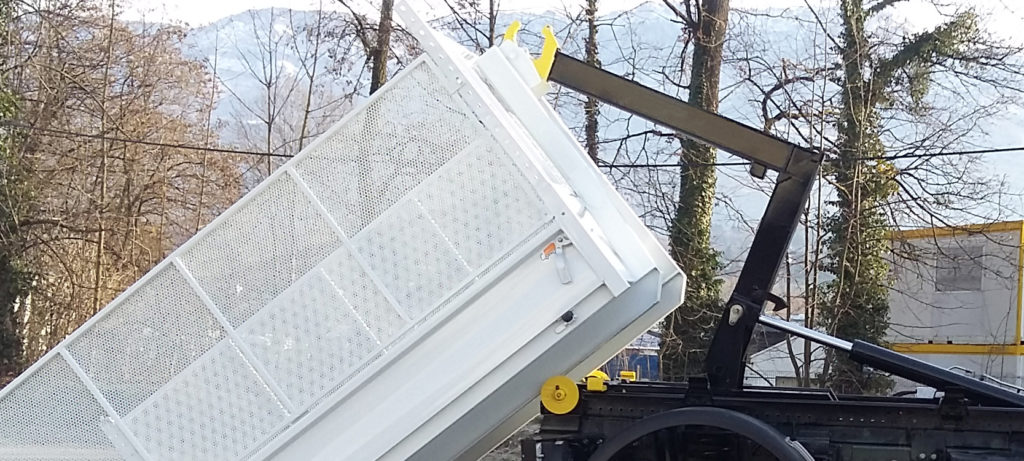

• Various hook heights from 920mm to 1570mm

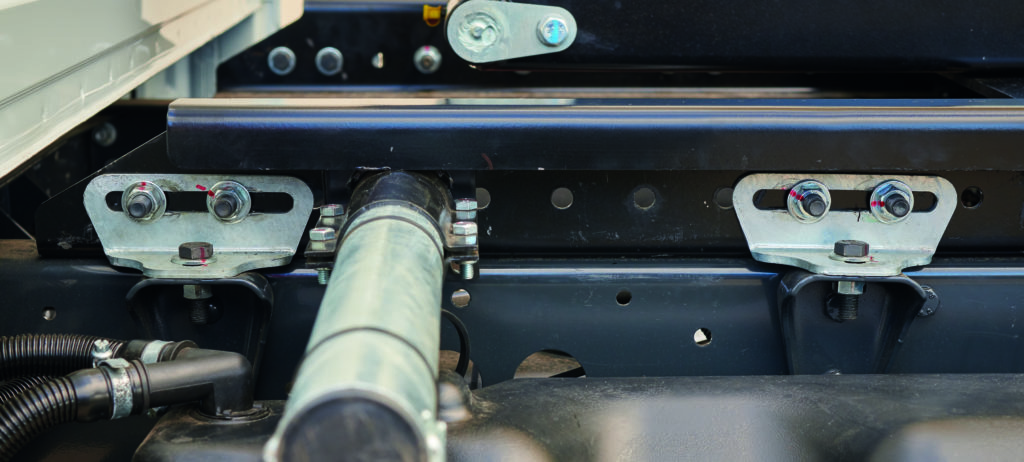

• Attachments brackets suited for various truck models

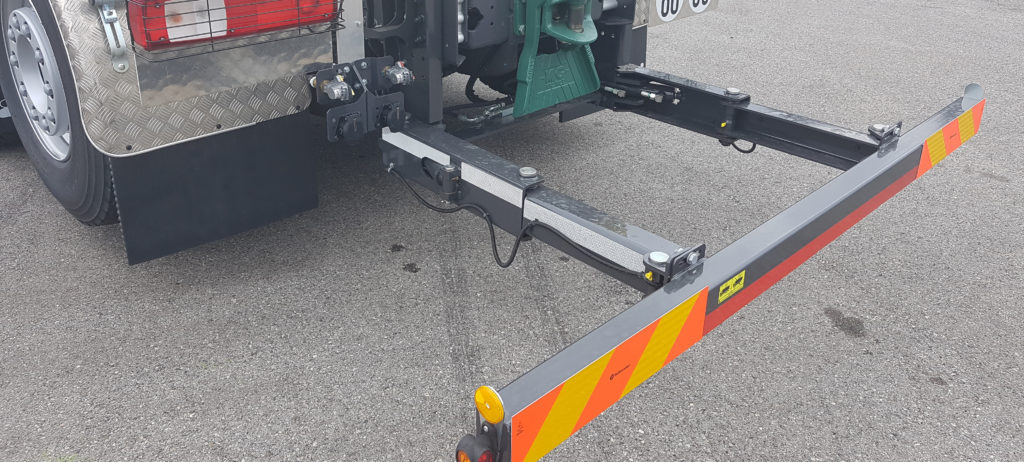

• Extendable rear underrun protection
• 12V and 24V versions

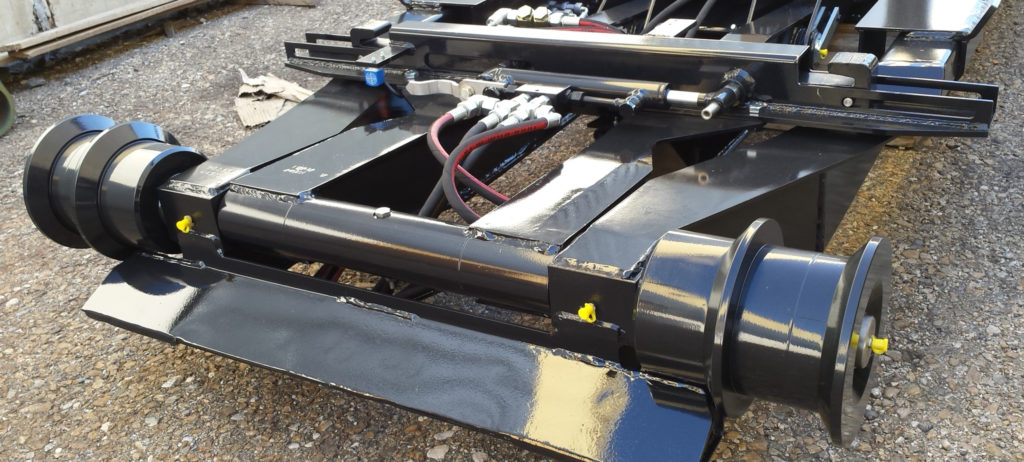

• Double track width 850 mm and 1060 mm

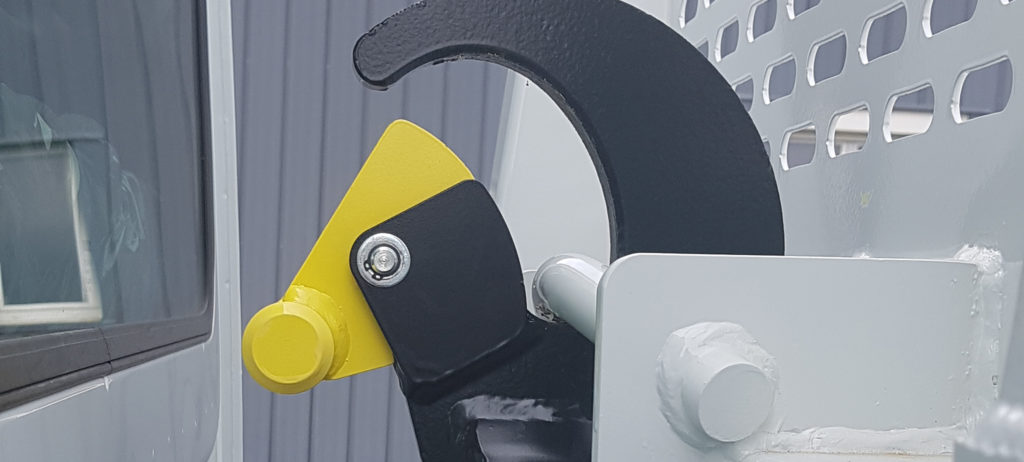

• Mechanical safety latch
AL4
DOCUMENTATION
Product sheet Ampliroll hooklift AL4
