AMPLIROLL^® TELESCOPIC JIB - 5T CAPACITY

TECHNICAL DATA

For GVW 7.5 to 10 T	MIN (mm)	MAX (mm)	RUP (mm)	A (°)	L1 (mm)	L2 (mm)	H (mm)	Weight (Kg)
A26	2300	3100	2800	56	2550	550	160	625
A27	2300	3400	2900	56	2650	650	160	635
A28	2300	3600	3000	56	2750	750	160	645
A29	2600	3800	3100	56	2850	550	160	655
A30	2600	3900	3200	56	2950	650	160	665
A31	2600	4000	3300	56	3050	750	160	675
A32	2600	4100	3400	56	3150	850	160	685
A33	2900	4200	3500	53	3250	650	160	695
A34	2900	4300	3600	53	3350	750	160	705
A35	2900	4400	3700	53	3450	850	160	715
A36	2900	4500	3800	53	3550	950	160	725
A37	3300	4600	3900	51	3650	650	160	735
A38	3300	4700	4000	51	3750	750	160	745
A39	3300	4800	4100	51	3850	850	160	755
A40	3300	4900	4200	51	3950	950	160	765

ARGUMENTS

• Integrated safety guards to prevent miss-use
• Marrel produced cylinders
• Adaptable to all container types
• Great depth of range
• Standardized hook height

HIGHLIGHTS

• Optimized equipment height
• Optimized weight for maximum useful load
• Magnetized removable control with digital screen
• Shot blasting and painting before assembly
• Customization: color on demand and wide range of accessories
• Adaptable to all chassis types

OPTIONS

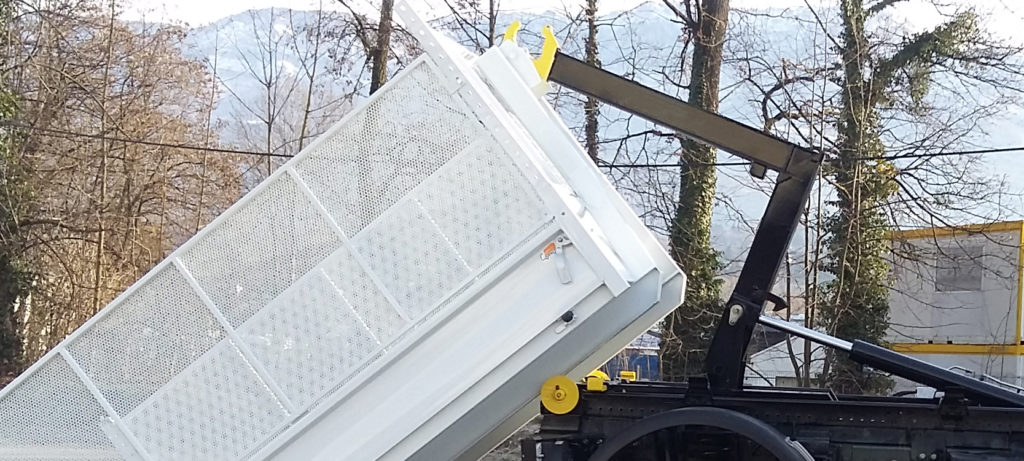

• Various hook heights from 920mm to 1570mm

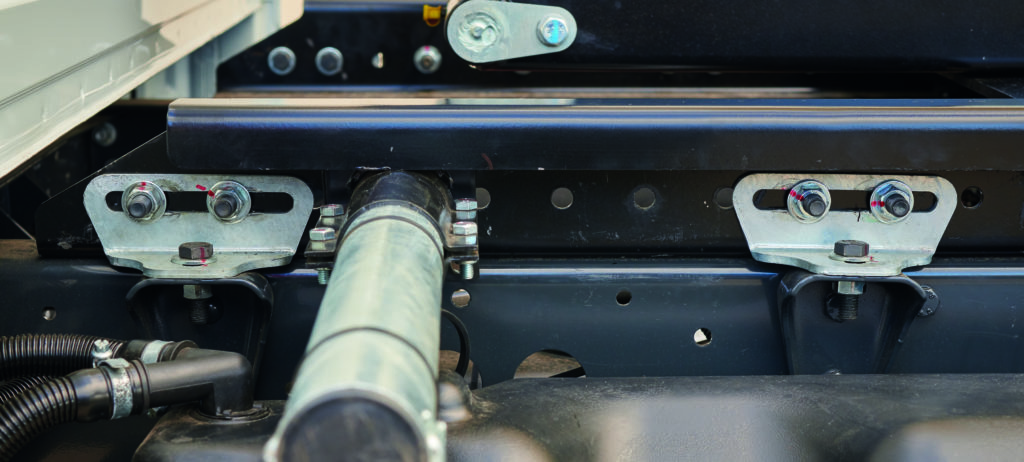

• Attachments brackets suited for various truck models

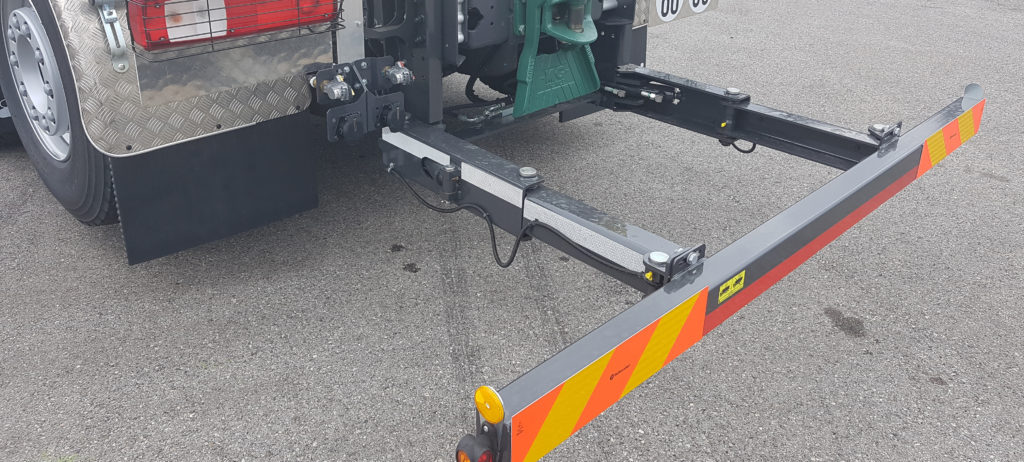

• Extendable rear underrun protection
• 12V and 24V versions

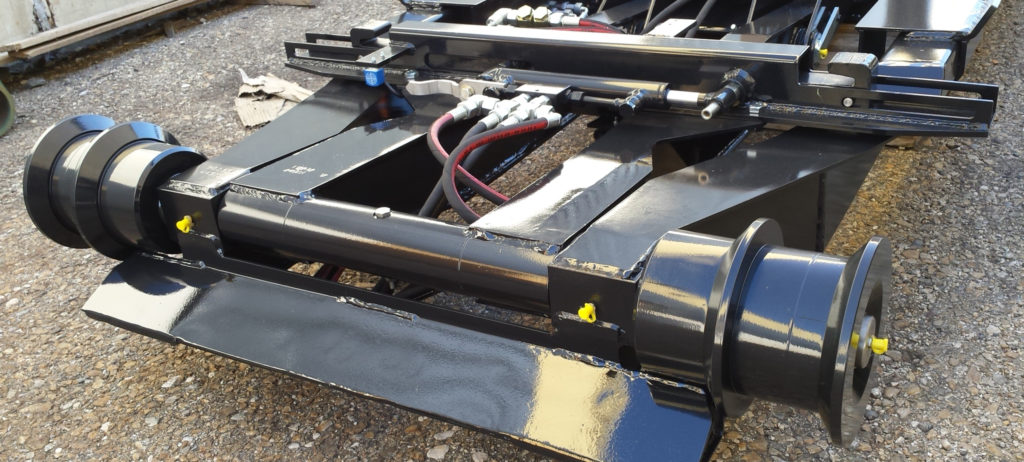

• Double track width 850 mm and 1060 mm

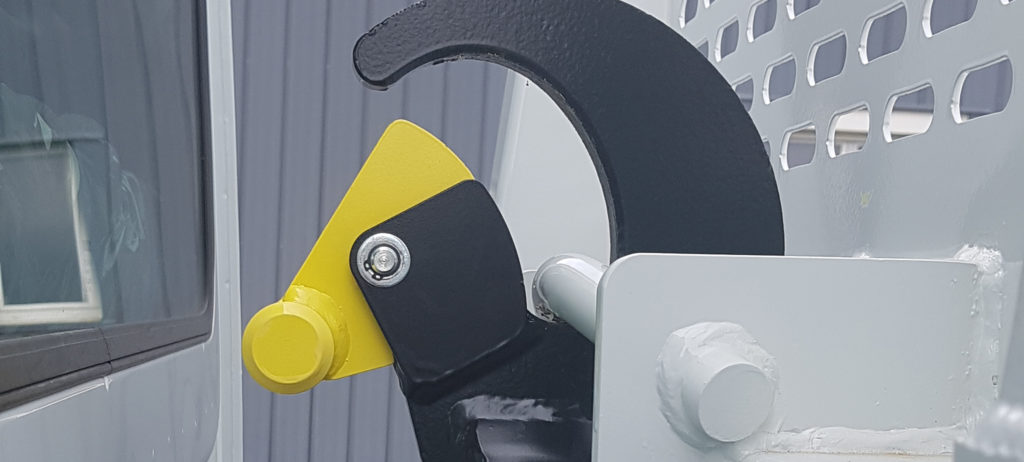

• Mechanical safety latch
