AMPLIROLL^® TELESCOPIC JIB - 5.6T CAPACITY

TECHNICAL DATA

For GVW 7.5 to 10 T	MII (mm)	MAX (mm)	RUP(mm)	A (°)	L1 (mm)	L2 (mm)	H (mm)	Weight (Kg)
A29	2700	3800	3200	58	2900	630	180	700
A32	3000	4100	3500	61	3210	585	180	750
A33	3000	4200	3600	61	3310	685	180	750
A34	3000	4300	3700	61	3410	775	180	750

ARGUMENTS

• Integrated safety to prevent miss-use
• Marrel manufactured cylinders
• Adaptable to all container types
• Single rear articulation axis
• Standardized hook height

HIGHLIGHTS

• The Marrel tilting frame provides unmatched lifting capacity
• Optimized equipment height
• Optimized weight for maximum useful load
• Magnetized removable control with digital screen
• Components shot-blasted before assembly
• Adaptable to all chassis types

OPTIONS

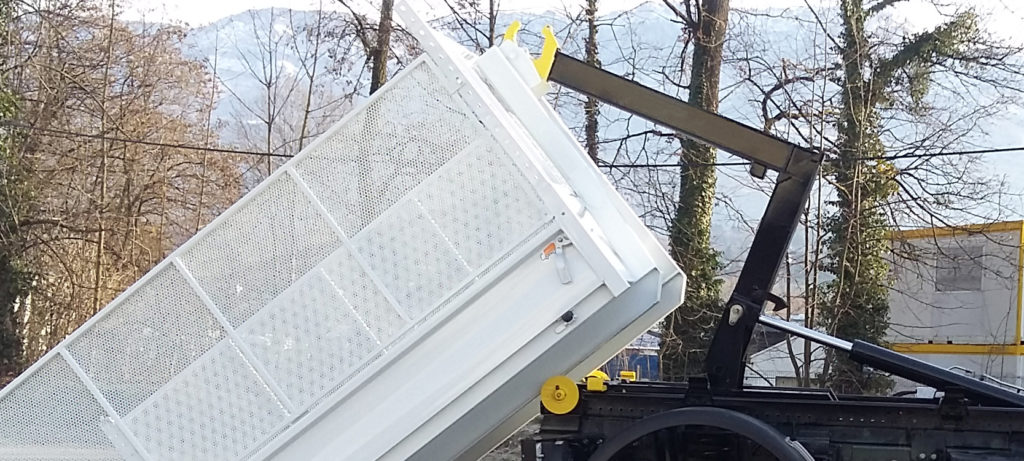

• Various hook heights from 920mm to 1570mm

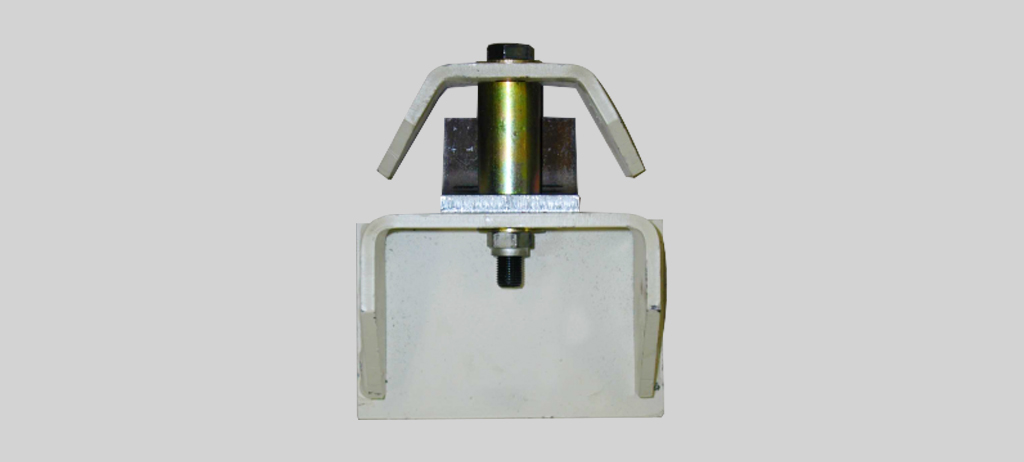

• Attachments brackets suited for various truck models

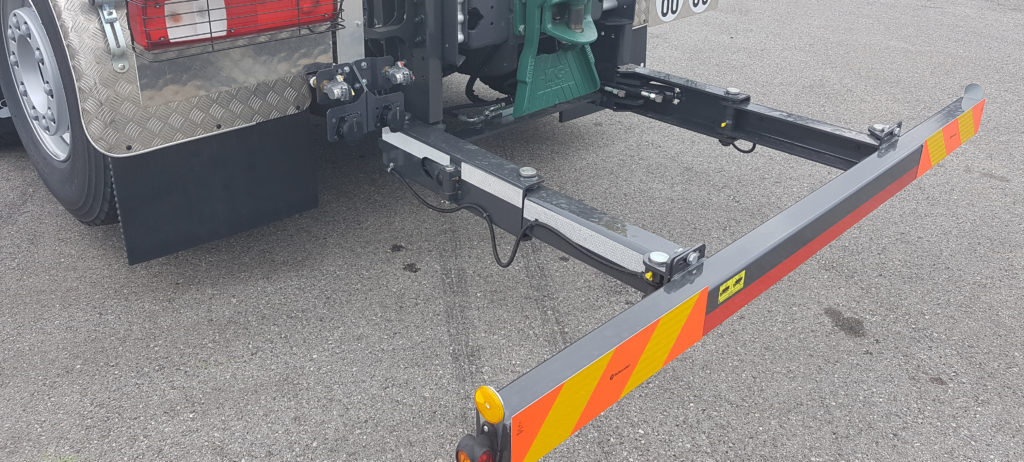

• Extendable rear underrun protection
• 12V and 24V versions

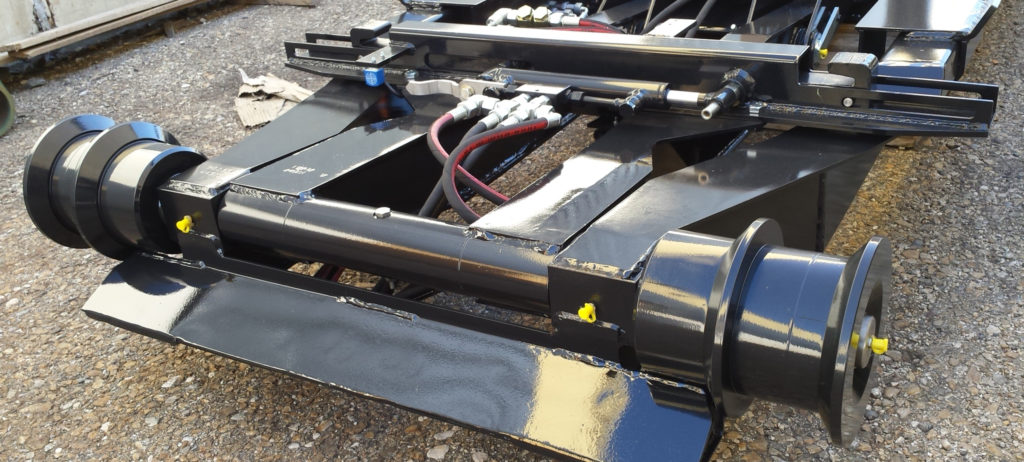

• Double track width 850 mm and 1060 mm

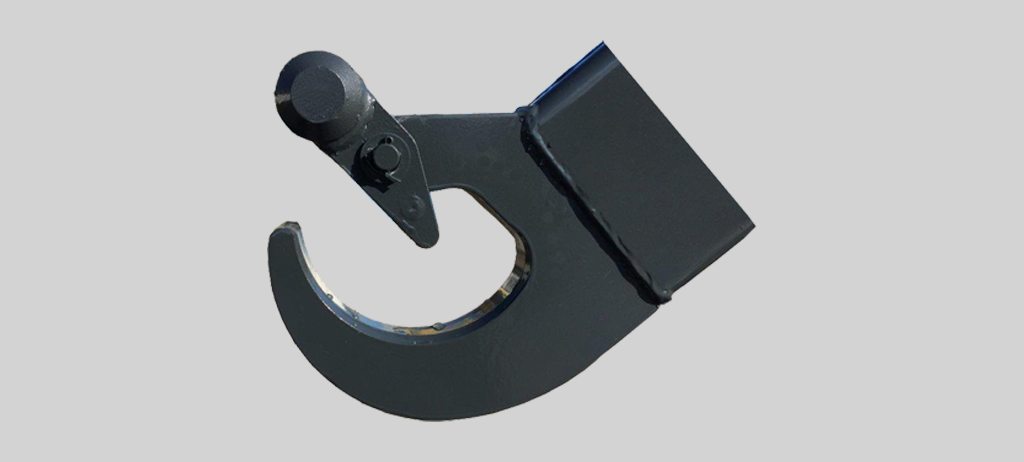

• Mechanical safety latch

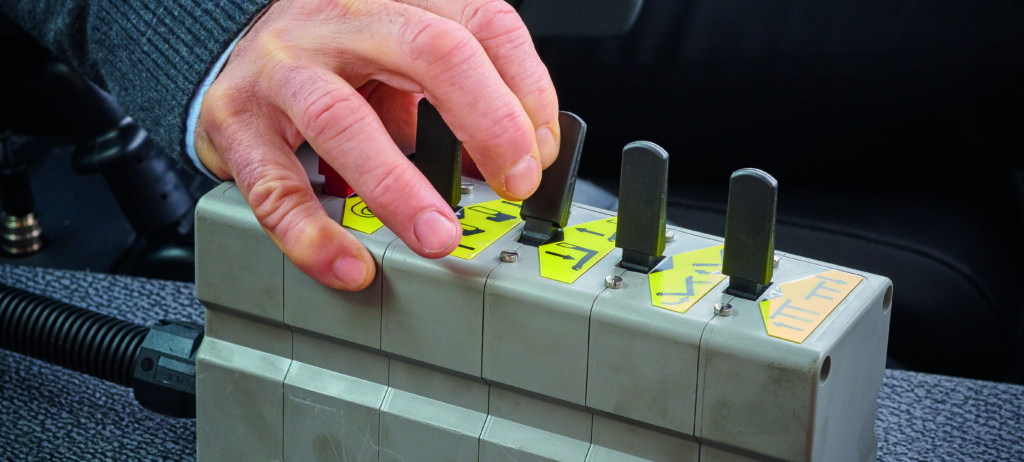

• Available controls: pneumatic
