MULTIBENNE® MB14
TECHNICAL DATA
Lifting capacity: Container placed on ground | 2880 mm (Kg)* | 3100 mm (Kg)* | 3300 mm (Kg)* | 4330 mm (Kg)* | Weight (Kg) | Container length | |
MB 14F Fixed | 14000 | 12700 | 11700 | 3000 | 1610/1850 mm | ||
MB 14T Télescopic | 14000 | 10000 | 3250 | 1610/1850 mm | |||
MB 14 FES fixed with crossbar | 14000 | 12700 | 11700 | 3050 | 1610/1850 mm | ||
MB 14 TES telescopic with crossbar | 14000 | 10000 | 3340 | 1610/1850 mm |
*Depending on loading radius
ARGUMENTS
• Integrated safety to prevent miss-use
• Marrel manufactured cylinders
• Fixed or telescopic main arms with or without upper crossbar
• Stabilizer with independant controls
HIGHLIGHTS
• Separately and simultaneously controlled telescopic units
• Integrated stabilizers and rear underrun protection
• Anti-corrosion treatment: shot blasting of fabricated components
• Front planking with adaptable trays
• Side and front container chocking
• Approved lifting chains and swivels with safety latch
OPTIONS

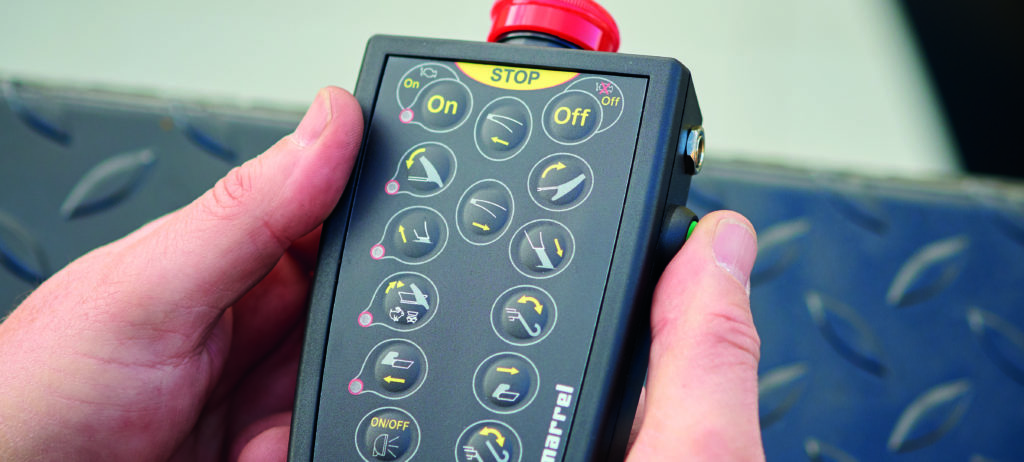

• Available controls: radio control

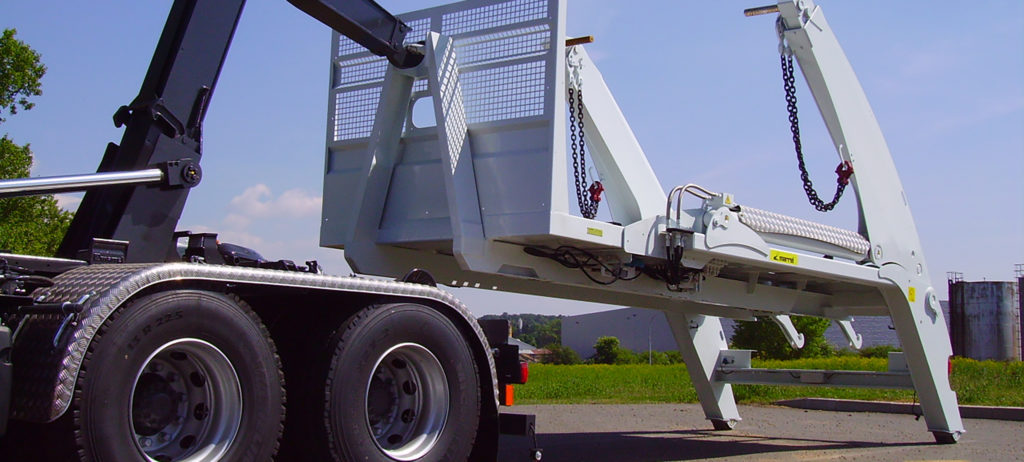

• Multibenne sur berce
• Skiploader on cradle

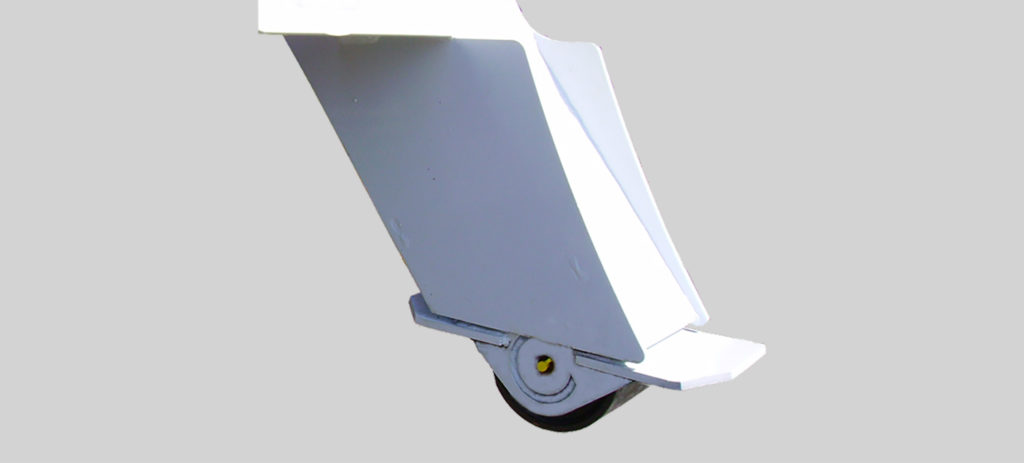

• Roller stands or pivoting runners
• High speed

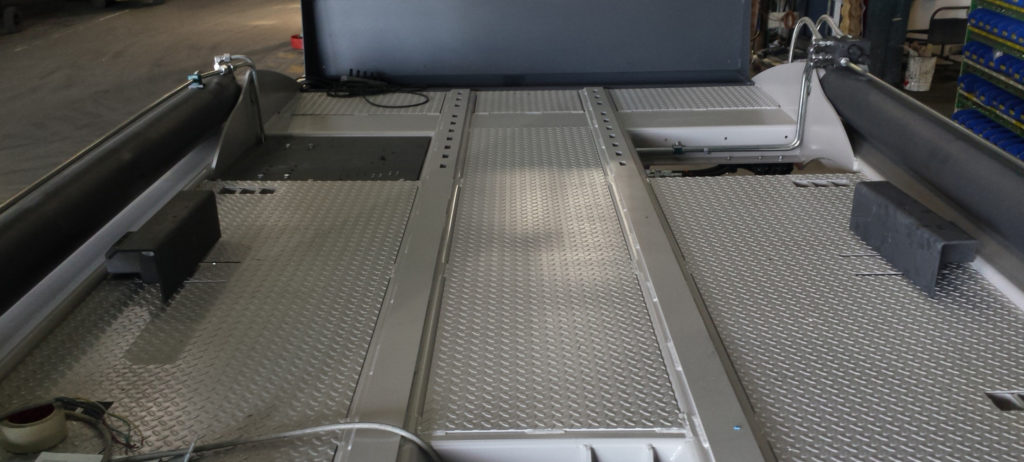

• Side hydraulic lock

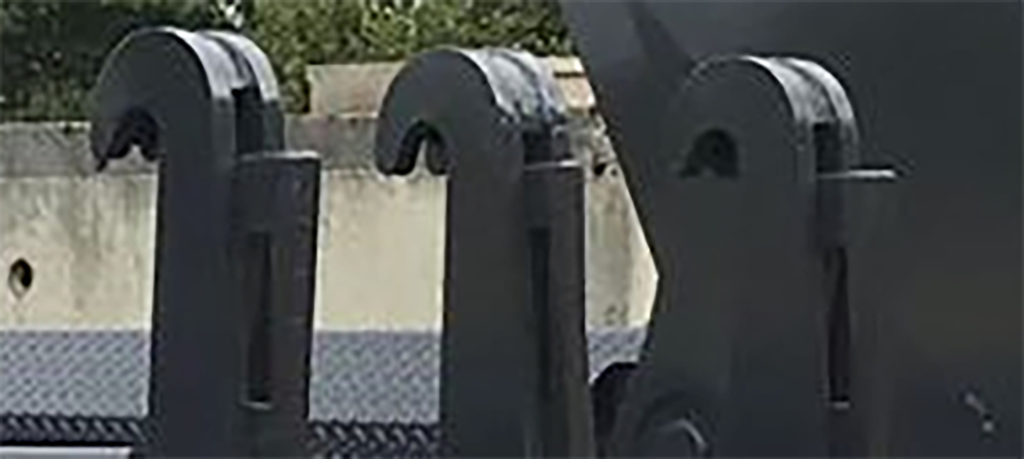

• Rear spreader with 1, 2 or 3 hooks

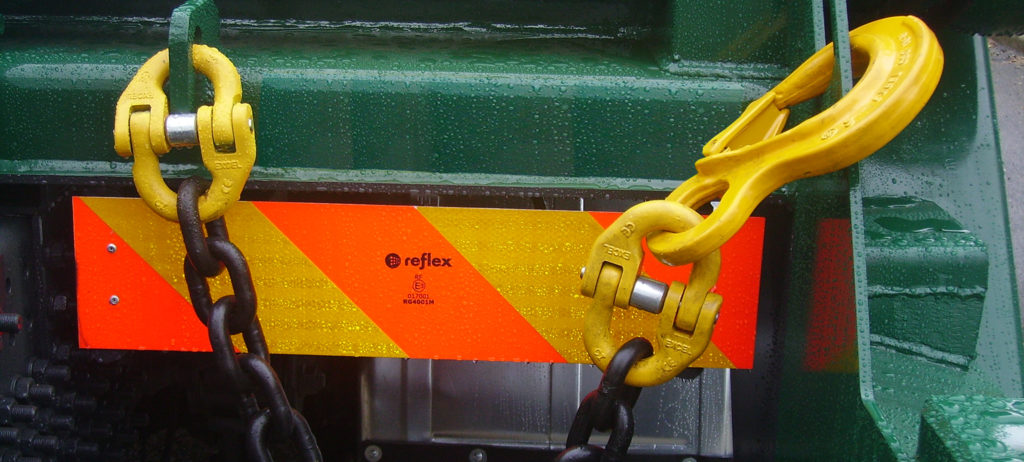

• Rear chains for better tilting

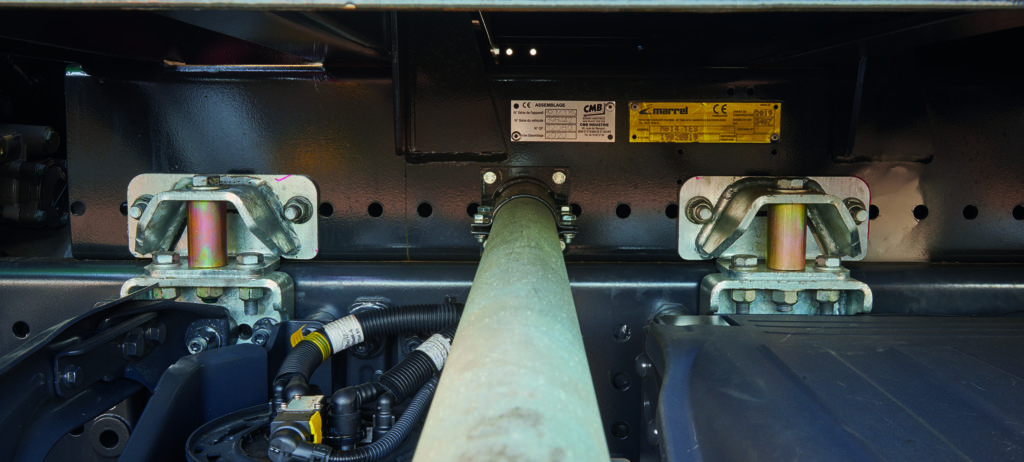

• Attachments brackets suited for various truck models
MB14
DOCUMENTATIONS
Product sheet Skiploader MB14 MB14
