TIPPER SCISSORS

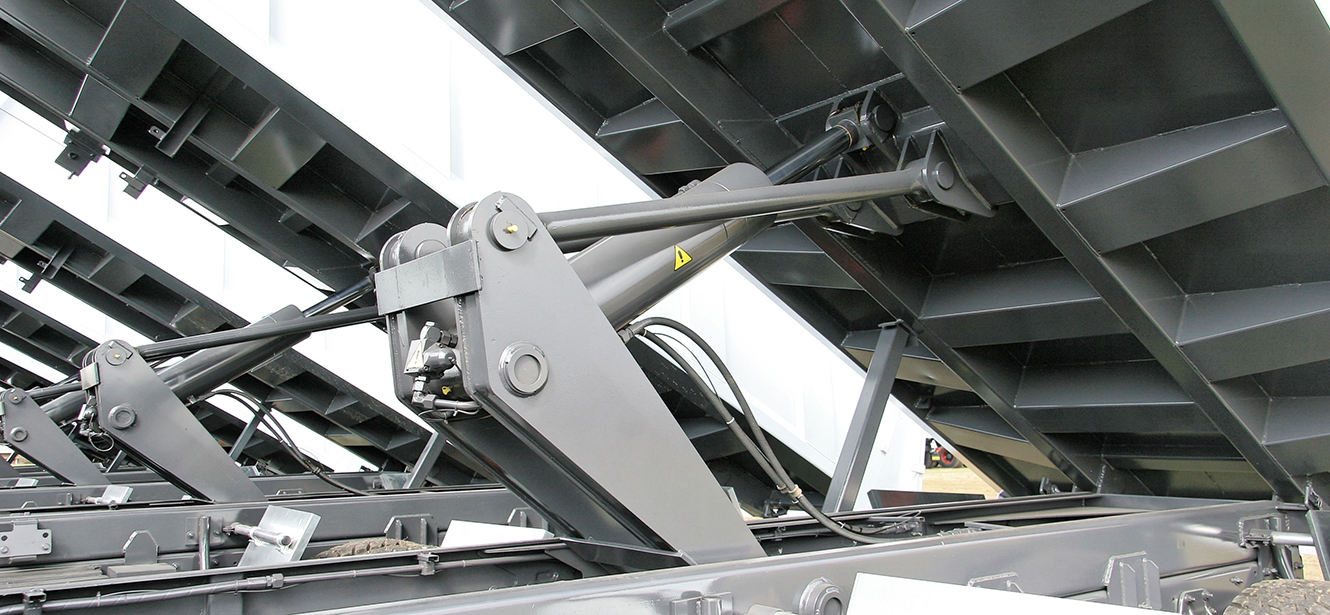

REAR TIPPER SCISSORS
A brandFASSI GROUP
A brandFASSI GROUP
A brandFASSI GROUP
REAR TIPPER SCISSORS
TECHNICAL DATA
Standard format
| Type | GVW | Pressure 350 bar | L | H | Y | LARG | Mass tipper scissor | Oil volume | X | ANGLE |
| 5S100/700 & 5S100/800 | 14T 2 axles | 10200 | 1080 | 350 | 500 | 470 | 185 | 6 | 2400 | 59 |
| 2500 | 57 | |||||||||
| 2600 | 54 | |||||||||
| 2700 | 52 | |||||||||
| 2800 | 50 | |||||||||
| 5S180 | 19T 2 axles | 18000 | 1080 | 375 | 550 | 410 | 235 | 11 | 2350 | 59 |
| 2450 | 57 | |||||||||
| 2550 | 54 | |||||||||
| 2650 | 52 | |||||||||
| 2750 | 50 | |||||||||
| 5S250 | 26T 2 axles | 25000 | 1080 | 400 | 550 | 450 | 312 | 15 | 2350 | 60 |
| 2450 | 58 | |||||||||
| 2550 | 56 | |||||||||
| 2650 | 54 | |||||||||
| 2750 | 52 | |||||||||
| 5S310 & 5S310BC | > 26T 3 & 4 axles | 29000 | 1130 | 400 | 415 | 500 | 425 | 19 | 2350 | 59 |
| 2450 | 56 | |||||||||
| 2550 | 54 | |||||||||
| 2650 | 52 | |||||||||
| 2750 | 50 | |||||||||
| 5S330 | 32T 4 axles | 32000 | 1340 | 480 | 315 | 500 | 500 | 22 | 2650 | 56 |
| 2750 | 54 | |||||||||
| 2850 | 52 | |||||||||
| 2950 | 50 | |||||||||
| 3050 | 48 | |||||||||
| 5S500 & 5S500BC | > 32T 4 axles | 43000 | 1450 | 480 | 470 | 620 | 740 | 31 | 2800 | 57 |
| 2900 | 56 | |||||||||
| 3000 | 54 | |||||||||
| 3100 | 53 | |||||||||
| 3200 | 51 |
HIGHLIGHTS
- The best compromise power / mass / speed
- A reduced mounting height which allows the center of gravity and improve stability
- An important tipping angle
- Optimized integration by its short length
- High quality construction using bores on a machine tool, axes on bearings
- Cylinder designed and produced by marrel
- Pre-piped tipper scissors equipped with a safety valve and hold the load in position
